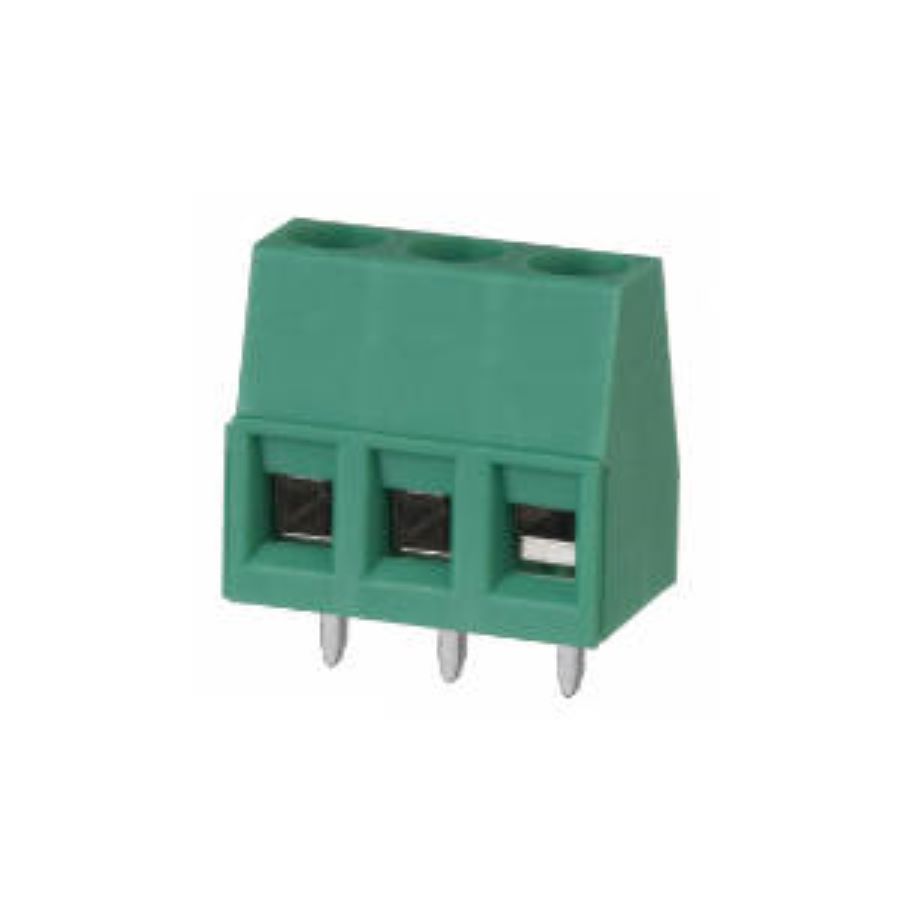

1715035
Manufacturer:
Phoenix Contact
Mfr.Part #:
1715035
Datasheet:
Description:
Terminal Blocks Through Hole 3 5 mm 15 A 300 V 30 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Length | 9.8 mm |
| Width | 17.3 mm |
| Termination | Solder Pin |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 3 |
| Height | 15 mm |
| Material | Polyamide |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 9.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| Voltage | 300 V |
| Weight | 4.390009 g |
| Contact Material(Contact Finish) | Tin |
| Pitch | 5 mm |
| Current | 15 A |
| Current Rating | 15 A |
| Max Current Rating | 22 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL, cULus |
| Number of Circuits | 3 |
| Orientation | Horizontal with Board |
| Max Supply Voltage | 250 V |
| Color | Green |
| Gender | Male |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Connector Type | Screw |
| Wire/Cable Gauge | 14 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 26 AWG |
| Housing Color | Green |
| Stripping Length | 7 mm |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 14 AWG |
Stock: 16
Distributors
pcbx
pcbxUnit Price$0.55315
Ext.Price$0.55315
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55315 | $0.55315 |
| 10 | $0.44870 | $4.48700 |
| 25 | $0.41847 | $10.46175 |
| 50 | $0.39028 | $19.51400 |
| 100 | $0.36399 | $36.39900 |
| 300 | $0.33947 | $101.84100 |
| 500 | $0.31661 | $158.30500 |
| 1000 | $0.30031 | $300.31000 |
